Crusher spares sorted by circuit position, machine model, alloy and shutdown urgency.
visible kits
28 products
quote basis
model · alloy · feed
shutdown file
crate proof before price
wear-part-dossier / 01
Smart twin-shaft shredding cell with 2 x 110 kW drives, 900 x 650 mm chamber, and integrated monitoring: per-shaft load logging, cutter wear tracking, and HMI shift reports. Rated 5-8 t/h on mixed light scrap, CE marked.
wear-part-dossier / 02
Extra-heavy low-speed twin-shaft shredder with 2 x 160 kW drives and hook-style cutters for foundry returns and castings. 1,000 x 800 mm chamber, rated 8-12 t/h on cast iron and aluminum castings, CE marked.
wear-part-dossier / 03
Heavy twin-shaft bale shredder with 2 x 250 kW drives and a 1,200 x 1,000 mm chamber. Hydraulic bale guide rollers feed compressed bales flat to the cut. Rated 12-20 t/h on aluminum and light-metal bales, CE marked.
wear-part-dossier / 04
Low-speed radiator shredder with 2 x 11 kW drives and a wide flat 600 x 400 mm chamber. Shear-and-peel action frees copper tubes from aluminum fins while keeping both metals sortable. Rated 0.6-1.2 t/h, CE marked.
wear-part-dossier / 05
Compact twin-shaft can shredder with a 300 x 400 mm chute and 2 x 7.5 kW drive on standard workshop power. Rated 0.4-1.0 t/h on UBC and light aluminum packaging. Screened discharge, auto-reverse, CE marked.
wear-part-dossier / 06
Single-shaft fine metal shredder with 90 kW drive, hydraulic ram feed, and interchangeable screen basket. Output sized 15-40 mm for granulation, remelt, and briquetting feed. Rated 2-5 t/h on non-ferrous scrap, CE marked.
wear-part-dossier / 07

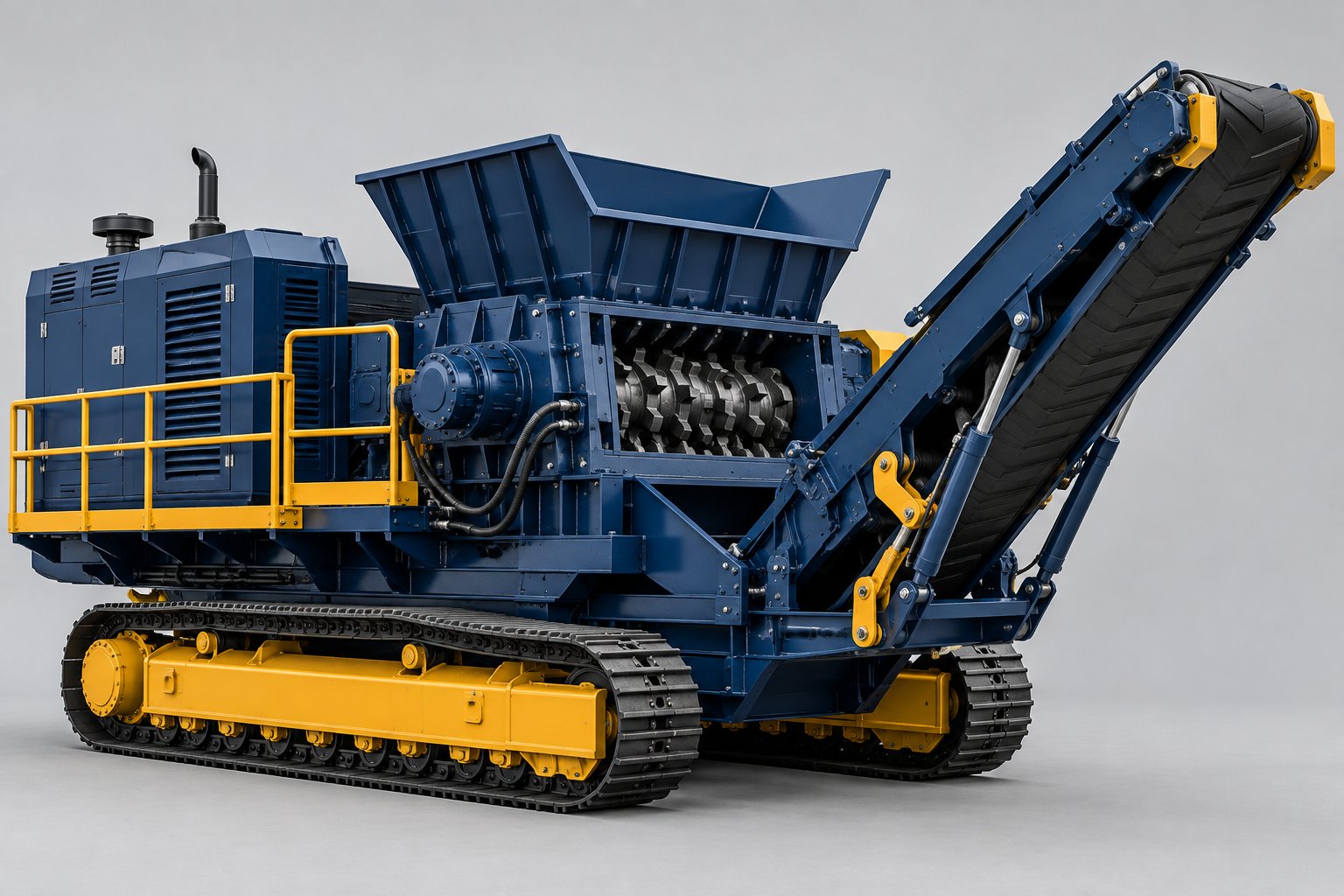

Track-mounted mobile twin-shaft shredder with 2 x 30 kW electric drive and onboard diesel generator. 700 x 500 mm chamber, 1.5-4 t/h on light scrap, radio remote control, foldable discharge conveyor, CE marked.
wear-part-dossier / 08

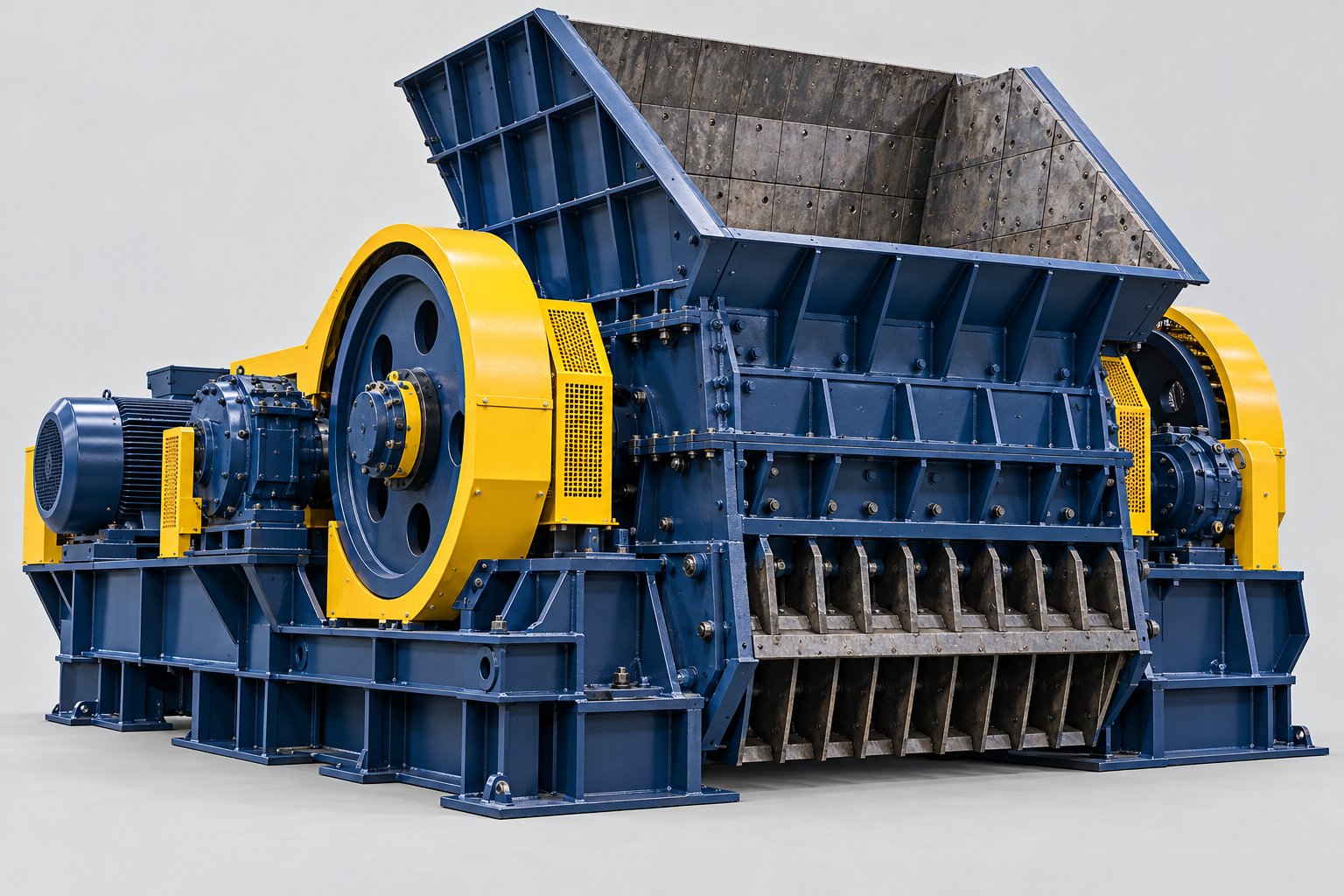

Hammer mill vehicle body shredder with an 800 kW drive and 1,800 x 1,200 mm charging chute. Rated 15-25 t/h on depolluted ELV hulks and light steel. Turnable Cr-Mo hammers, adjustable grate, CE marked.
wear-part-dossier / 09
Heavy twin-shaft metal shredder with 2 x 400 kW geared motors and a 1,400 x 1,100 mm chamber. Rated 30-40 t/h on whole white goods, bulky mixed scrap, and light non-ferrous feed. Hydraulic chamber access, auto-reverse, CE marked.
wear-part-dossier / 10

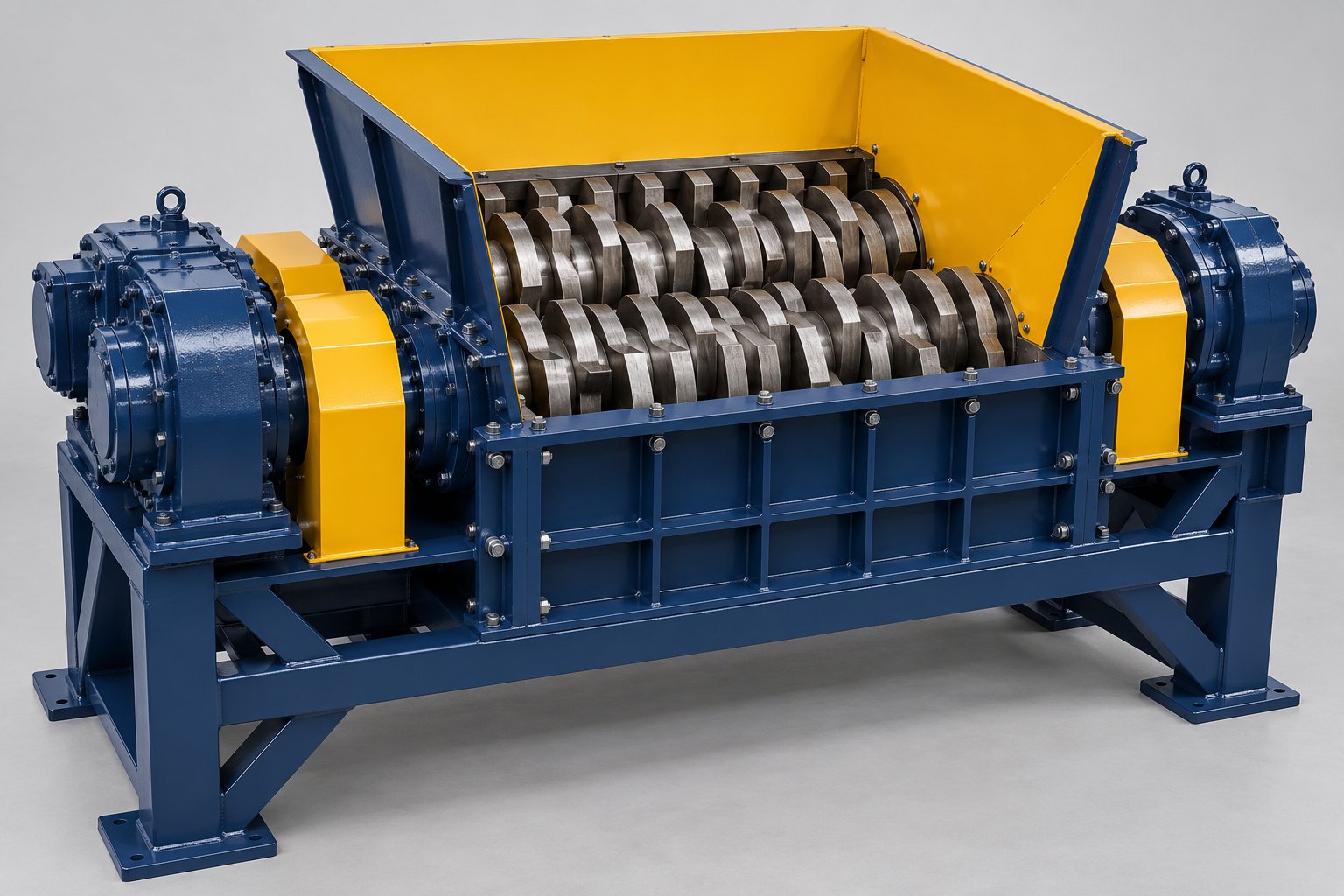

Mid-range twin-shaft metal shredder with 2 x 45 kW geared motors and an 800 x 600 mm chamber. Rated 3-6 t/h on sheet steel, aluminum profiles, cable, and small appliance casings. Bolt-on alloy discs, PLC auto-reverse, CE marked.
wear-part-dossier / 11
Integrated e-waste metal recovery line with twin-shaft shredder, granulator, magnetic separator, eddy current separator, and air classification. Recovers ferrous metals, non-ferrous metals, and concentrated metal-bearing fractions from discarded electronics after battery removal.
wear-part-dossier / 12
Standalone hydraulic briquetting system that compacts loose metal chips, turnings, and swarf into dense cylindrical briquettes. Handles steel, cast iron, aluminum, copper, and brass. Reduces transport costs 5-10x and recovers cutting fluid during compaction.
